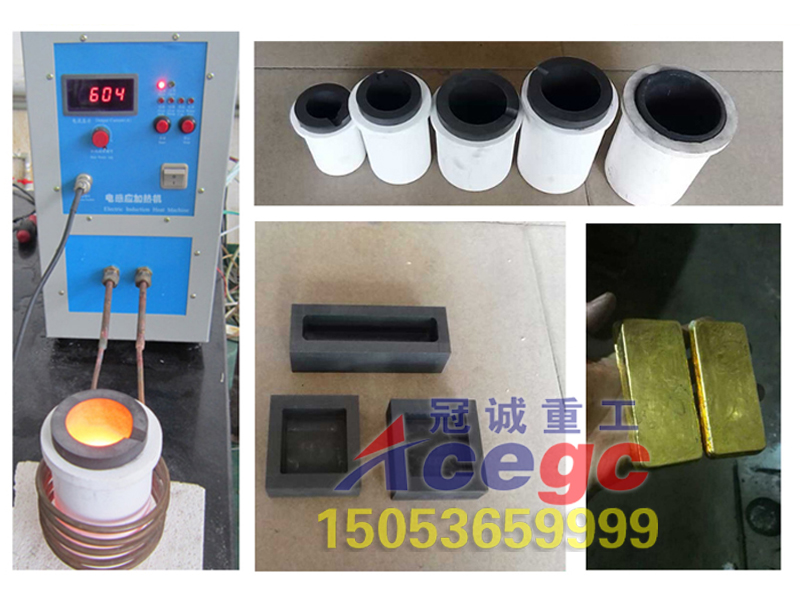

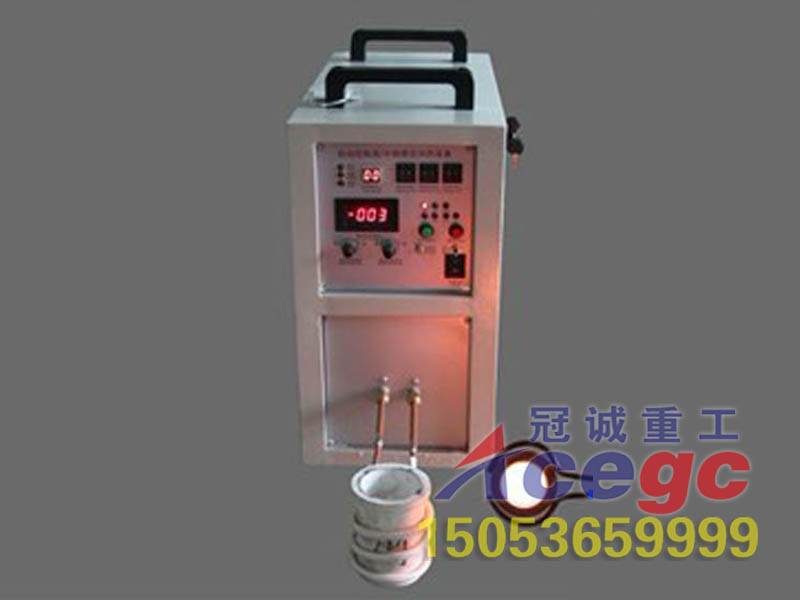

熔金爐主要技術參數:Main technical parameters of gold melting furnace
1、最大振蕩功率Maximum oscillation power : 25KVA
2、功率power : 5KW
3、振蕩頻率scillation frequency : 30—80KHZ
4、輸入電壓input voltage : 三相 380V, 50 或or 60HZ
5、負載持續率Load duration: 80%
6、爐溫溫度范圍Furnace temperature range：≥1600℃
7、單次熔化時間Single melting time：≤10min
 8、單次熔煉量Single smelting capacity:金銀銅Gold, silver and copper15g～4kg （可以邊熔邊加料You can add material while melting）
9、成套冷卻水要求CW：0.2Mpa,4～5 L/min
10、機器進出水冷卻控制：利用增壓水泵控制進出水流循環冷卻。Cooling control of machine inlet and outlet water: circulating cooling of inlet and outlet water is controlled by booster pump
注：機器內電子元器件均為西門子。Note: all electronic components are Siemens components.
